Pack 550 X-ray System for Large Packaged Product

Pack 550

• Primary Application

  Medium and large packaged goods in cartons, cases, sacks, bags, pouches, cups, tubs, trays, and other packaging

• Contamination Detection

  Metal, glass, stone, bone, high-density plastics, rubber, low-density contaminants

• Product Quality and Integrity Inspection

  Missing item, clip, count, void, broken-item, mass, sorting, shape, package integrity

• Compliance/Validation/ Reporting

  User management, guided performance verification routine (PVR), machine health checks, reject bin
  monitoring, risk-assessment support

• Lane Configuration

  Single or multi-lane system

• Conveyor Speed

  Up to 80 m/min (262 ft/min); conveyor speed ranges are determined by the selected motor

• Throughput

  Up to 1000 products/min

• Maximum Product Height

  Up to 279 mm (11”); see beam geometry limits

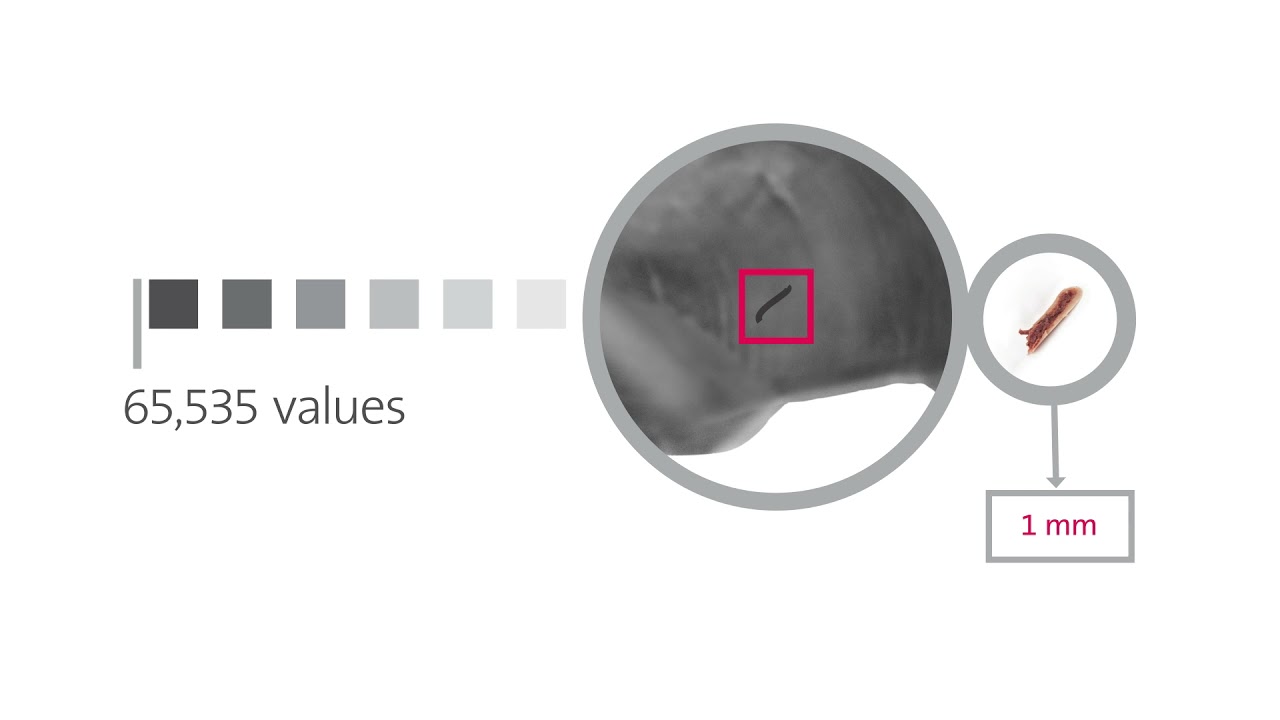

• Detector Technology

  0.1–0.8 mm PXT™ photon-counting detector options; 0.4 mm standard or 0.4 mm single-energy

• X-ray Generator

  420 W, up to 84 kV, up to 5 mA, beryllium or glass tube; HR7, up to 140 kV, up to 1 mA glass tube; HR9N, up to 140 kV, up to 3 mA glass tube

• HMI

  15.6” PCAP touchscreen, Full-HD (1920 × 1080); 250 GB memory

• Operating System

  Windows 11 LTSC

• Inspection Software

  SimulTask™ 6

• Traceability/Reporting/ Connectivity

  Eagle Repository™, TraceServer™, PDF reporting, centralized storage, OPC-UA, Ethernet/IP

• Safety Features

  Up to Category 3 / PLd (EN13849) safety circuit with HMI visibility, LOTO disconnect, compliant to 21 CFR 1020.40, 21 CFR 179.21; <1 μS/hr emissions

• Ingress Protection / Hygienic Features

  IP69; type 304 stainless steel; surface finish less than 0.8μm/32μ-inch RA (ISO 21920-3); designed to NAMI Sanitary Guidelines, EHEDG, NSF, ISO, and CE standards where feasible

• Operating Environment

  0–40°C (32–104°F); 25–90% RH non-condensing

• Power Supply

  230 VAC ±10%, single phase, 50/60 Hz, FLA 9.0A

• Cooling

  4k/6k BTU shrouded AC (IP69)

• Compressed Air

  Not required for base machine; rejects may require 5.5 bar (80 psi), 3/8” line; dry and filtered air supply

• External Interface

  (8) rejects, (5) inputs, (9) outputs, and (4) PLC monitoring signals for: system processing, system calibrating, fault condition, x-rays on

• Reject Options

  24 VDC signal, air blast, side push arm; other reject options available

• Remote Service

  TeamViewer™ or customer-specific solution for remote service, diagnostics, and product set-up assistance; 24-hr support

• Conveyor Length

  1,828 mm (72”), 2,438 mm (96”), 2,895 mm (114”)

• Conveyor Height

  762–1,397 mm (30–55”); additional heights upon request

• Inspection Area at Belt

  540 mm (21.2”)
