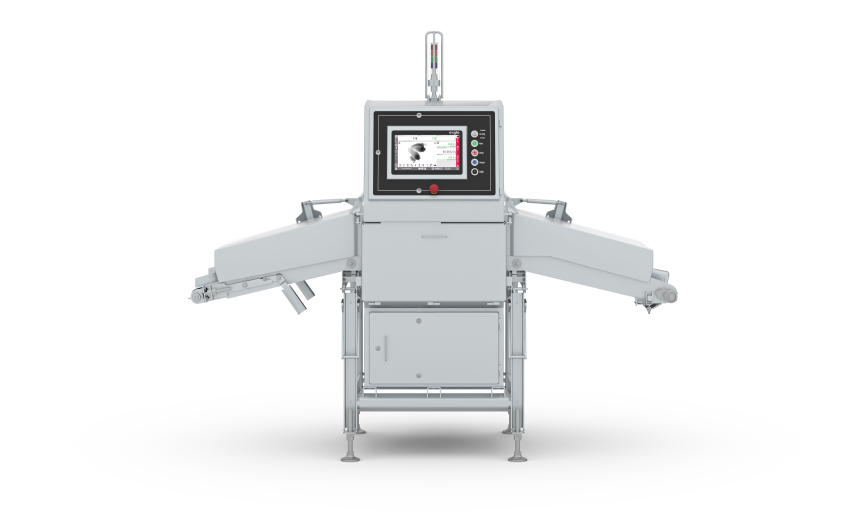

X-ray Machine RMI 540

The Eagle RMI 540 x-ray inspection system is hygienically constructed to sanitary design for superior bone and contaminant detection in the meat, poultry and seafood industries, where daily sanitation and hygiene requirements are stringent.

Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540
Eagle's X-ray System RMI 540

All the Power of X-ray Analysis

The RMI 540 incorporates a wide belt ideal for multilane applications to help you keep pace with volume while ensuring contaminant detection for raw and unpackaged products. By combining our breakthrough PXT™ detector, processors can obtain much higher resolution images than previously possible. This results in improved detection of smaller bones and contaminants with fewer false rejects increasing productivity while reducing unnecessary and costly rework.

The RMI 540 has a unique curtainless design and incorporates an innovative inclined infeed and out-feed conveyor. This innovative design enables fast and convenient visual inspection during cleaning while also reducing the number of surfaces a product comes into contact with during processing. It also has an easy-to-remove belt for faster and more efficient washdown‒keeping production lines running longer for optimum output.

All the Power of X-ray Analysis

Machine Specifications

RMI 540

  • Inspection Coverage

    537.5 mm wide at the belt, 537.5 mm wide at the top of aperture; 70 mm overall height

  • Inspection Modes

    SimulTask™ 4 PRO standard inspection modes include contaminant, bone, missing item, clip, void, premium, shape/size, position, fill level, count, zonal mass, mass measurement with 2, 3, or 5 zone checkweighing functionality with statistics

  • User Interface & Operating System

    15″ TFT color touch screen; Windows 10 Enterprise LTSB with Eagle SimulTask™ 4 PRO Control & Imaging Software; TeamViewer™ service tool for remote machine diagnostics & product set-up services

  • Conveyor Size

    578 mm (22.8″) wide by 2645 mm (104.1″) Long; Blue homogeneous food-grade urethane non-wicking friction belt compliant for transport of unpackaged foodstuffs

  • Reject Mechanism

    24VDC Signal only, freestanding retracting nose or lift gate reject, custom reject

  • Speed Range

    10 – 50 MPM (33 – 164 FPM), subject to generator & detector used, product type & dimensions

  • X-ray Power

    Single vertical beam; 500W (100kV, 5mA)

  • Detector Resolution

    PXT™ Performance X-ray Technology

  • Communication

    (2) USB 2.0 ports, (1) Ethernet 10/100/1000 mbps port, (1) RS232 serial port; (1) EtherNet/IP Fieldbus interface port optional

  • IP Rating & Machine Finish

    IP69 Standard; Type 304 Stainless Steel, #4 surface finish less than 32u-inch RA

  • Radiation Safety

    X-ray emissions <1 uS/hr; compliant to 21 CFR 1020.40, 21 CFR 179.21, & EURATOM ER nationalized standards

  • Electrical Safety

    Compliant with CAT-3 (EN954), PLd (EN13849) safety circuits with system visualization

  • Thermal Management

    Water cooled heat exchanger, plant water supply ≥7.6LPM, 13°C to 21°C required; Air conditioner optional

  • Operating Range

    0°C to 40°C (32°F to 104°F) 25% to 90% relative humidity non-condensing

  • Power Requirements

    230 VAC, +/-10%, Single Phase, 50/60 Hz, 16 Amp Fused

  • Options & Accessories

    Multilane operation, product guides, TraceServer™ data collection software, RECON™ rework station, remote user interface, audible & visual alarms, hazard based risk assessment

Eagle’s Industries

Eagle’s x-ray systems are capable of solving a wide variety of product safety and quality control issues for many different industries.

Red meat

Poultry

Seafood

Advanced X-ray Inspection Technologies

Enhanced Dual Energy
Dual Energy Technology
SimulTask™ PRO
TraceServer™
PXT™ Dual Energy Technology

Enhanced Dual Energy

Dual Energy Technology

Dual Energy Technology

SimulTask™ PRO

EaglePI TraceServer Block

TraceServer™

Eagle’s X-ray Capabilities

Contaminant Detection

Superior x-ray inspection technology provides outstanding detection of physical contaminants regardless of their size, shape or location within a product.

Bone Detection

Find and reject harmful bone fragments, 2 mm or less, in various meat and seafood applications.

Metal Detection

Capable of metal detection including stainless steel, ferrous and non-ferrous metals in a broad range of applications.

Mass Measurement

Mass and weight measurement with x-ray technology provides an additional layer of process control and due diligence to ensure a high-quality.
